Product Description
The N2-T system consists of:
- 2-stage regulator with a 4000 PSIG bottle pressure gauge, to take the bottle pressure of ~3000 PSIG down to 7 PSIG
- 3rd stage regulator to take the 7 PSIG output of the 2-stage regulator to a factory-set regulated pressure of 0.5 PSIG
- 4" diameter gauge to monitor the tank pressure from -10 to +10 PSIG
Features:
- Panel mount brackets for mounting to a flat surface

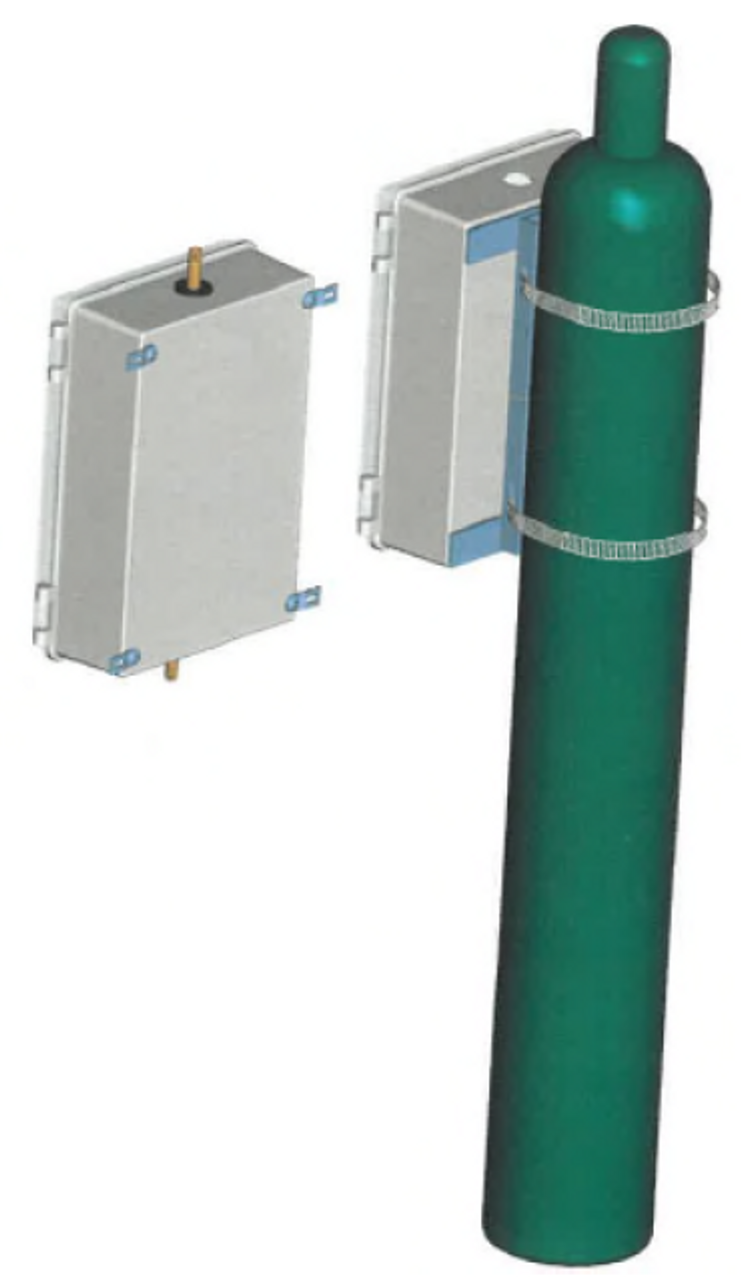

- Adjustable straps for mounting on an N2 bottle
- Flexible stainless steel connection hose available for system to bottle connection
- Lightweight engineered plastic enclosure

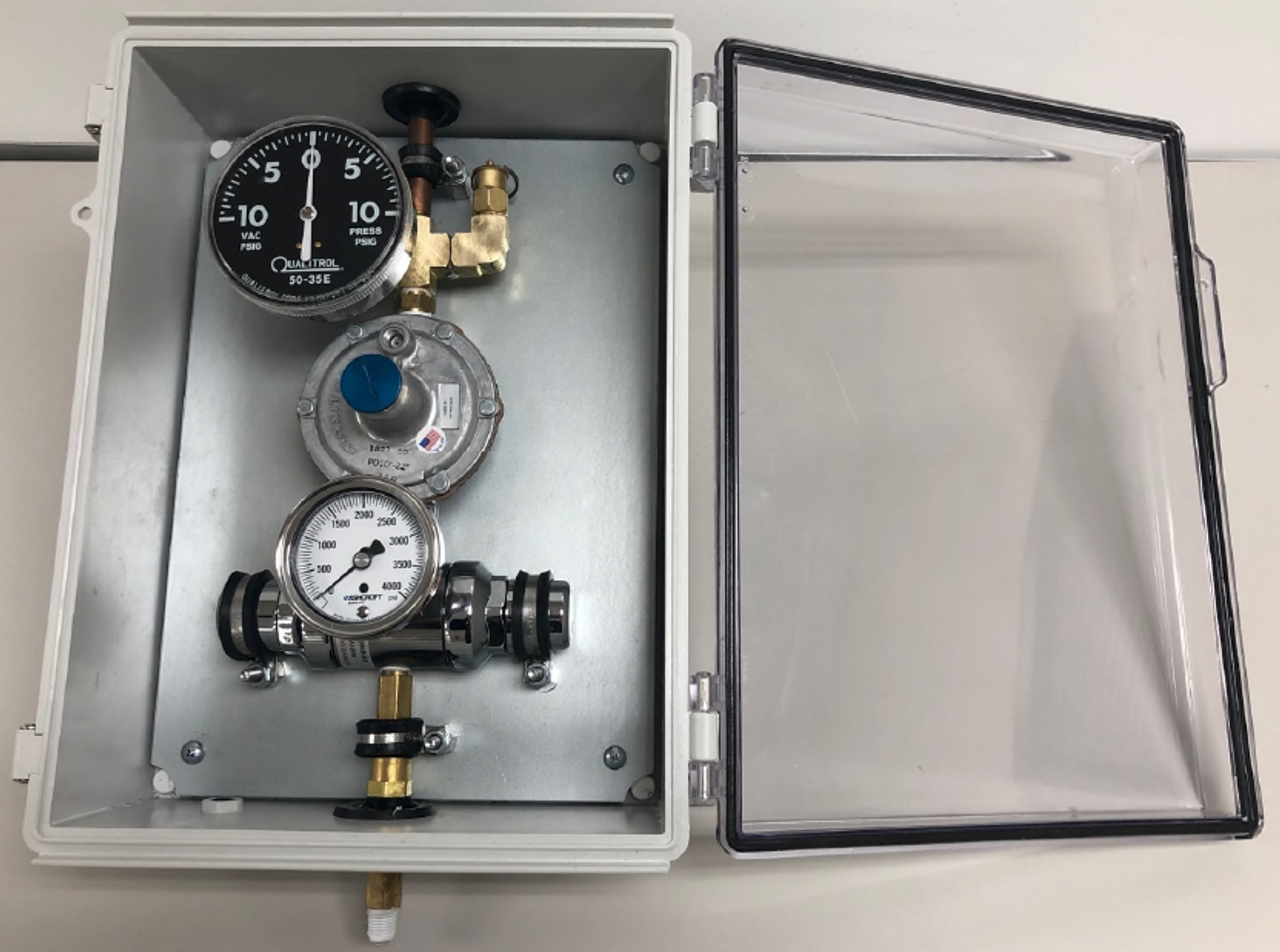

- Clear lid to easily view gauges
- Flat metal panel mounting feet included
